Secure Your Mobile App with OIDC and Ionic for JHipster

“I love writing authentication and authorization code.” ~ No Java Developer Ever. Tired of building the same login screens over and over? Try the Okta API for hosted authentication, authorization, and multi-factor auth.

We’ve been building a ton of new projects with Ionic and JHipster here at Okta, and today I’m excited to show you how to secure those projects with OIDC. Let’s start with some basics: Ionic is a framework for building native mobile apps using web technologies. It’s technically a “hybrid” app because it’s not using native SDKs. Hybrid mobile apps are distributed just like native apps: they can be installed on mobile devices, and they’re listed in app stores. There’s a good chance your end users will never be able to tell the difference between a hybrid and a native mobile app.

JHipster is an application generator for modern web apps. It generates a Spring Boot backend, with an Angular UI. It even supports progressive web apps! In addition to being able to create standalone apps, it can also generate a microservices architecture based on Spring Boot and Spring Cloud. The apps it generates have authentication, monitoring, and management built-in. You can also use its entity generator to build CRUD apps quickly and easily.

In this post, you’re going to try out Ionic for JHipster, a JHipster module you can use to generate a hybrid mobile app that runs on your phone. It starts by creating a project with ionic start and leveraging the Ionic JHipster Starter for its files. It supports JWT authentication by default. If you have OAuth 2.0 / OIDC as your authentication mechanism, it installs OIDC support. It even works with a JHipster-generated microservices architecture!

As a project, JHipster’s goal is to generate an app that unifies:

• A high performance and robust Java stack on the server side with Spring Boot
• A sleek, modern, mobile-first front-end with Angular and Bootstrap
• A robust microservice architecture with JHipster Register, Netflix OSS, Elastic Stack, and Docker
• A powerful workflow to build your application with Yeoman, Webpack/Gulp, and Maven/Gradle

We love JHipster so much; we recently became a Gold Sponsor on Open Collective! 🥇

Since I wrote the first version (in 2015) of the JHipster Mini-Book, I’ve always wanted to add support for generating an Ionic client. I’m happy to report that my dreams have finally come true!

Introducing the Ionic Module for JHipster! 🎉

Ionic is a framework that allows you to create mobile applications using the web technologies you know and love. It currently has Angular support, but its development team has been working on adding support for React and Vue as well. They’re doing this via their Stencil project. Stencil allows you to build web components rather than framework-specific components. Since web components are standards-compliant, they can be used in a vanilla JavaScript application, or with many popular framework out-of-the-box.

Apache Cordova powers Ionic’s mobile support. Cordova is the underlying technology that makes it possible to build and run mobile apps created with HTML, CSS, and JavaScript. It allows you to target multiple platforms (e.g., Android, iOS, Windows, Blackberry, and Ubuntu) with one code base. Pretty slick, eh?

The Ionic team has also recently released an Ionic PWA Toolkit. The PWA Toolkit is a beta project that has everything you need to build a high-performance PWA (for example, Ionic, routing, Stencil, push notifications, lazy loading, code splitting, lazy image loading, etc.). All of Ionic’s projects outside of hybrid development seem to demonstrate that Ionic has had success outside of the phone with PWA apps on the web.

Get Started with Ionic for JHipster

JHipster requires that you have Node.js and Java 8 installed. You can install it via Homebrew (brew install jhipster), Chocolatey (choco install jhipster), or with npm.

npm i -g generator-jhipster

Develop a Blog App with OIDC Authentication

To develop a blog application with JHipster, open a terminal window, create a directory, and run jhipster.

mkdir blog && cd blog && jhipster

JHipster asks many questions about the type of application you want to create and what features you’d like to include. The table below shows the choices I made to create a blog application with Angular, OAuth 2.0 / OIDC authentication, and Gradle.

The project generation process will take a couple of minutes to run, depending on your internet connection speed. When it’s finished, you should see output like the following.

Server application generated successfully.

Run your Spring Boot application:
 ./gradlew

Client application generated successfully.

Start your Webpack development server with:
 yarn start

Congratulations, JHipster execution is complete!
Application successfully committed to Git.

OIDC with Keycloak and Okta

JHipster supports OAuth 2.0 and OIDC for authentication. Keycloak is the default Identity Provider (IdP) configured with JHipster. Having Keycloak set by default is nice because you can use it without having an internet connection.

To log into your application, you’ll need to have Keycloak up and running. The JHipster Team has created a Docker container for you that has the default users and roles. Start Keycloak using the following command.

docker-compose -f src/main/docker/keycloak.yml up

Start your application with ./gradlew (or ./mvnw if you chose Maven) and you should be able to log in using “admin/admin” for your credentials.

To switch to Okta by default, you’ll first need to create an OIDC app. If you don’t have an Okta Developer account, get one today!

Log in to your Okta Developer account and navigate to Applications > Add Application. Click Web and click the Next button. Give the app a name you’ll remember, specify http://localhost:8080 as a Base URI, and the following as a Login redirect URI and Logout redirect URI.

• http://localhost:8080/login
• http://localhost:8100

Click Done and you should see a client ID and client secret on the next screen. Edit the General Settings of your application and enable “Implicit (Hybrid)” grant type, and check the two boxes below it. Implicit flow needs to be allowed for your Ionic to authenticate.

Copy the client ID and secret into src/main/resources/config/application.yml, replacing the default security.oauth2.* property values.

security:
    basic:
        enabled: false
    oauth2:
        client:
            access-token-uri: https://{yourOktaDomain}.com/oauth2/default/v1/token
            user-authorization-uri: https://{yourOktaDomain}.com/oauth2/default/v1/authorize
            client-id: {yourClientId}
            client-secret: {yourClientSecret}
            client-authentication-scheme: form
            scope: openid profile email
        resource:
            filter-order: 3
            user-info-uri: https://{yourOktaDomain}.com/oauth2/default/v1/userinfo
            token-info-uri: https://{yourOktaDomain}.com/oauth2/default/v1/introspect
            prefer-token-info: false

On Okta, navigate to Users > Groups. Create ROLE_ADMIN and ROLE_USER groups and add your account to them.

TIP: If you’ve installed e2e tests with Protractor, you’ll need to modify them to use an Okta account when running integration tests. Change the default credentials in src/test/javascript/e2e/account/account.spec.ts and src/test/javascript/e2e/admin/administration.spec.ts. Even better, set your credentials as environment variables and read them in your Protractor tests.

Navigate to API > Authorization Servers, click the Authorization Servers tab and edit the default one. Click the Claims tab and Add Claim. Name it “groups” or “roles”, and include it in the ID Token. Set the value type to “Groups” and set the filter to be a Regex of .*.

Restart your app, and you should be redirected to Okta when you try to log in.

Enter the credentials you used to signup for your account, and you should be redirected back to your JHipster app.

Generate Entities

To generate entities for your blog application, create a blog.jh file. In it, use JHipster’s JHipster Domain Language (JDL) to define your data model.

entity Blog {
    name String required minlength(3),
    handle String required minlength(2)
}

entity Entry {
    title String required,
    content TextBlob required,
    date ZonedDateTime required
}

entity Tag {
    name String required minlength(2)
}

relationship ManyToOne {
    Blog{user(login)} to User,
    Entry{blog(name)} to Blog
}

relationship ManyToMany {
    Entry{tag(name)} to Tag{entry}
}

paginate Entry, Tag with infinite-scroll

Run jhipster import-jdl blog.jh to create all the code you’ll need to manage your blog’s data. Run yarn start and confirm that all your entities exist (and work) under the Entities menu.

Develop a Mobile App with Ionic

Getting started with Ionic for JHipster is similar to JHipster. You can have to install the Ionic CLI, Yeoman, the module itself, run a command, then profit!

npm i -g generator-jhipster-ionic ionic yo
yo jhipster-ionic

If you have your blog application at ~/blog, you should run this command from your home directory (~). Ionic for JHipster will prompt you for the location of your backend application. Use the default name, ionic4j for your app’s name and choose “Yes” when asked to integrate with Cordova.

Once the installation process completes, you’ll need to restart your blog app for the Java code changes made by Ionic for JHipster. It adds an /api/auth-info endpoint to retrieve OIDC information from the server and installs a ResourceServerConfiguration class for Spring Security.

Run the following commands to start your Ionic app.

cd ionic4j
ionic serve

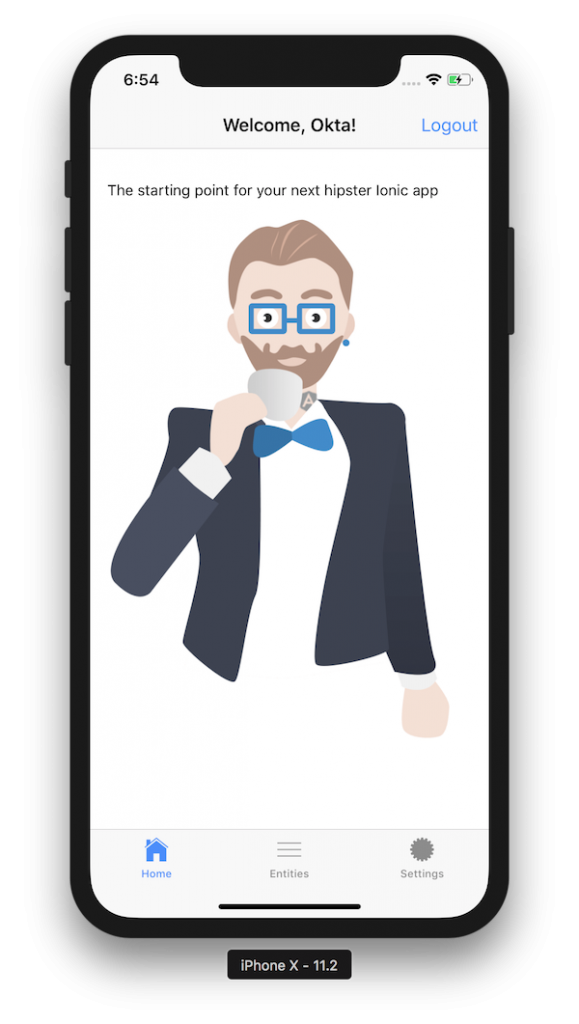

You’ll see a screen with a sign-in button. Click on it, and you’ll be redirected to Okta to authenticate.

Now that you know authentication works, you can use the entity generator to generate Ionic pages for your data model. Run the following commands (in your ~/ionic4j directory) to generate screens for your entities.

yo jhipster-ionic:entity blog
yo jhipster-ionic:entity entry
yo jhipster-ionic:entity tag

Enter ../blog as the path to your existing application. When prompted to regenerate entities and overwrite files, type “Y”.

The iOS emulator runs on port 8080, so you will need to change your backend to run on a different port when running in an emulator. Change port 8080 to 8888 in the following files:

• backend/src/main/resources/config/application-dev.yml
• ionic4j/src/providers/api/api.ts

NOTE: You’ll also need to add http://localhost:8888/login as a valid redirect URI in the Okta Developer Console.

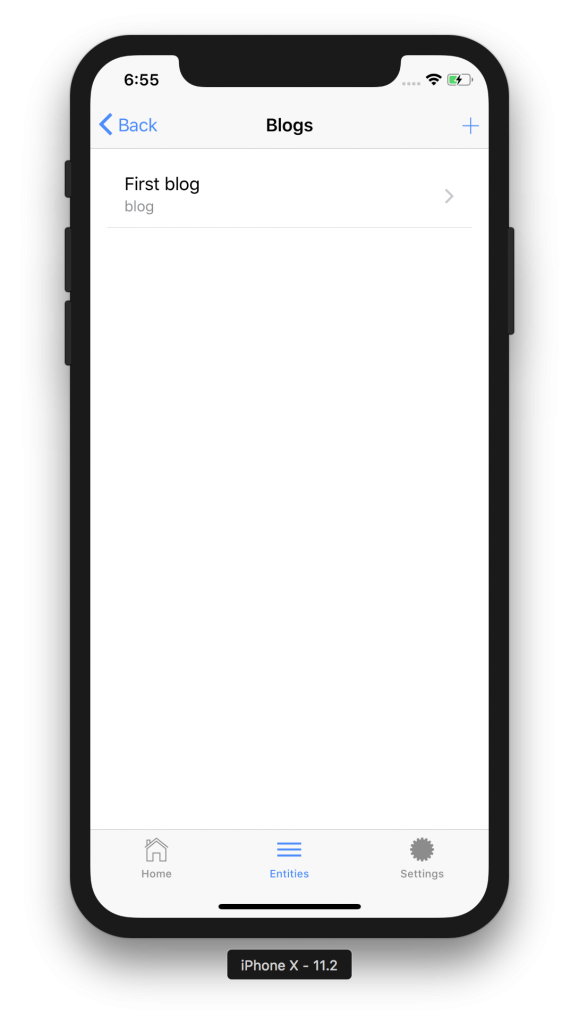

Restart the blog app, then run the Ionic app with ionic cordova emulate ios. You should be able to log in to your Ionic app, tap Entities and view the list of blogs.

Add a blog in the JHipster app at http://localhost:8888.

To see this new entry in your Ionic app, pull down with your mouse to simulate the pull-to-refresh gesture on a phone. Looky there – it works!

You can try adding a second entry by clicking the + sign in the top right corner. If the keyboard doesn’t show when you click on a field, navigate to Hardware > Keyboard > Toggle Software Keyboard.

Why Ionic instead of a PWA?

I hope you’ve enjoyed this tour of Ionic for JHipster. Since JHipster supports progressive web apps (PWAs), you might be asking yourself, why Ionic instead of a PWA?

The first version of 21-Points Health I wrote with JHipster 2.x was painful to use on a mobile device, mostly because it didn’t have remember me support. The 4.x version of 21-Points Health is better, but it’s still not great. If PWA support was better on the iPhone (and it will be soon!), I might think differently. In the meantime, I like that Ionic provides a UI that looks like a native app, and its animations and things like pull-to-refresh are hard to beat.

I want to develop the best user experience. Native apps are painful to distribute, but they still seem to work better than PWAs (on iOS). The beauty of the way that Ionic integrates with JHipster is you can have both! You can turn your JHipster app into a PWA (instructions are in your app’s README) and distribute a mobile app in the app store. If you slap on some analytics, you can see which one gets more usage, and determine the best client for yourself.

Learn More About Ionic and JHipster

I’ve written a thing or two about JHipster and Ionic on this blog. If you’d like to see how to deploy your Ionic app to a mobile device, I recommend reading the deploy to a mobile device section of Tutorial: Develop a Mobile App With Ionic and Spring Boot. I showed how to add OIDC authentication to an Ionic app in Build an Ionic App with User Authentication.

You can find the source code for the application developed in this post at https://github.com/oktadeveloper/okta-ionic-jhipster-example.

See the following posts for information on building microservices with JHipster and to learn more about its OIDC support.

• Develop and Deploy Microservices with JHipster
• Use OpenID Connect Support with JHipster

Give @oktadev a follow on Twitter if you liked this tutorial. If you have any questions, please leave a comment or post your question to Stack Overflow with a jhipster tag.

“I love writing authentication and authorization code.” ~ No Java Developer Ever. Tired of building the same login screens over and over? Try the Okta API for hosted authentication, authorization, and multi-factor auth.

Use Ionic for JHipster to Create Mobile Apps with OIDC Authentication was originally published to the Okta developer blog on January 30, 2018.
